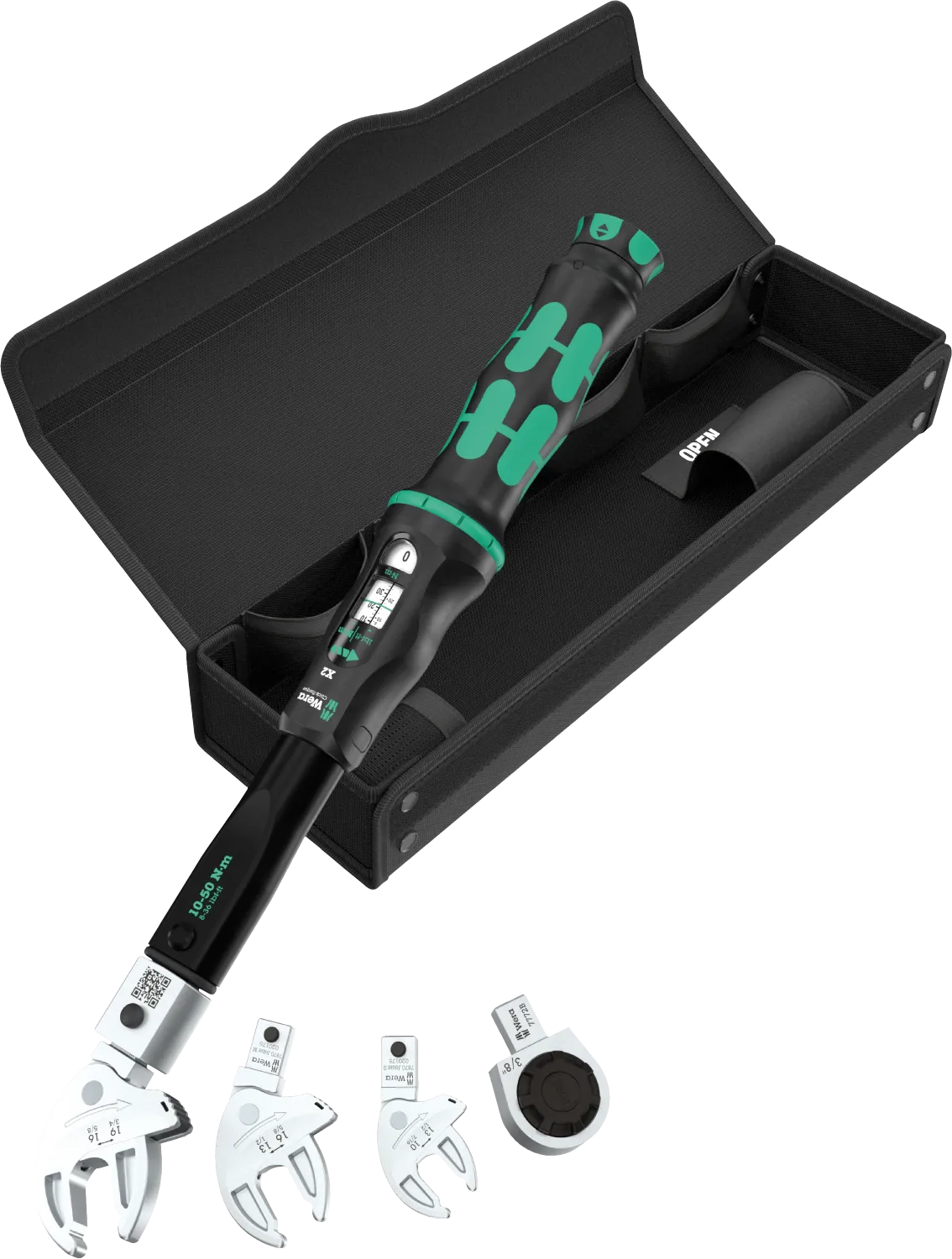

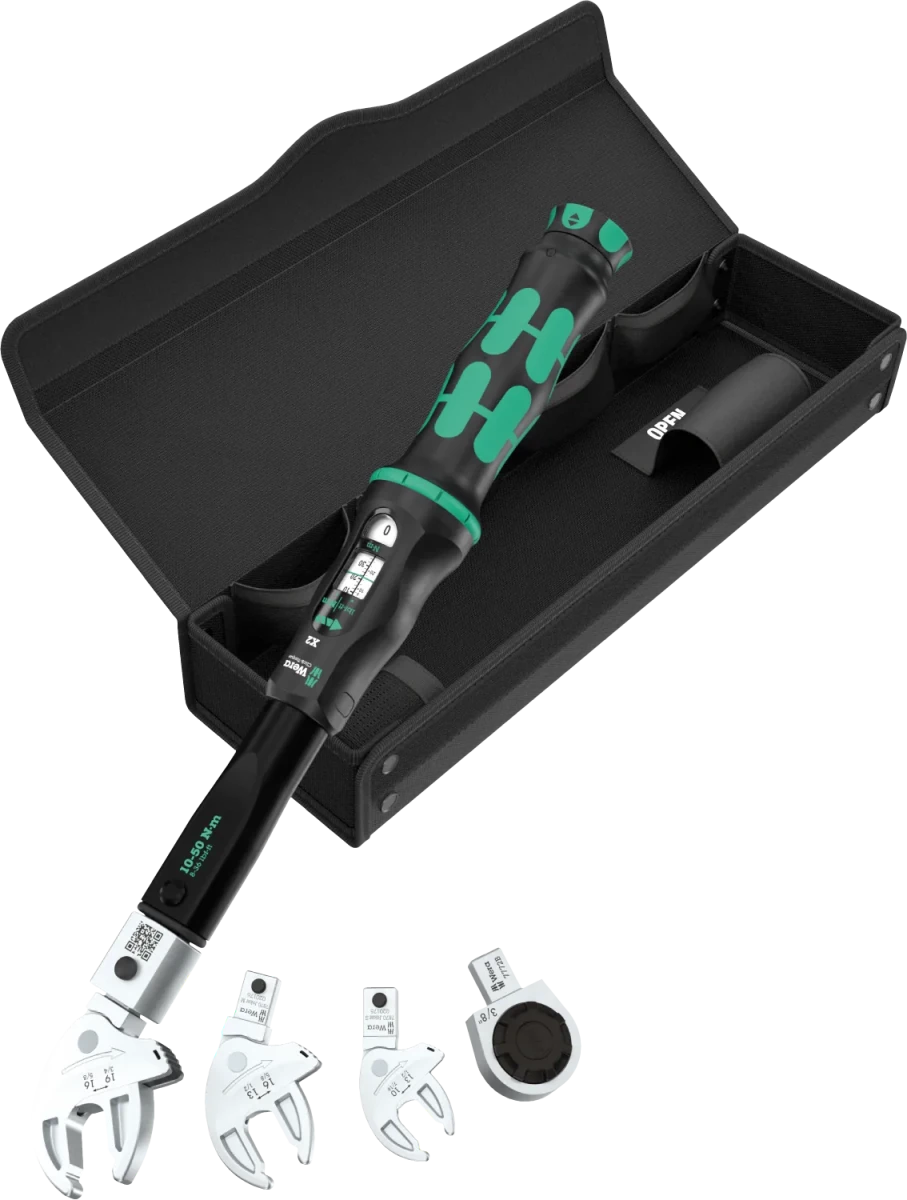

  • Wera 9558 torque wrench set for pipe fittings with Joker inserts, ratchet attachment, and textile storage case

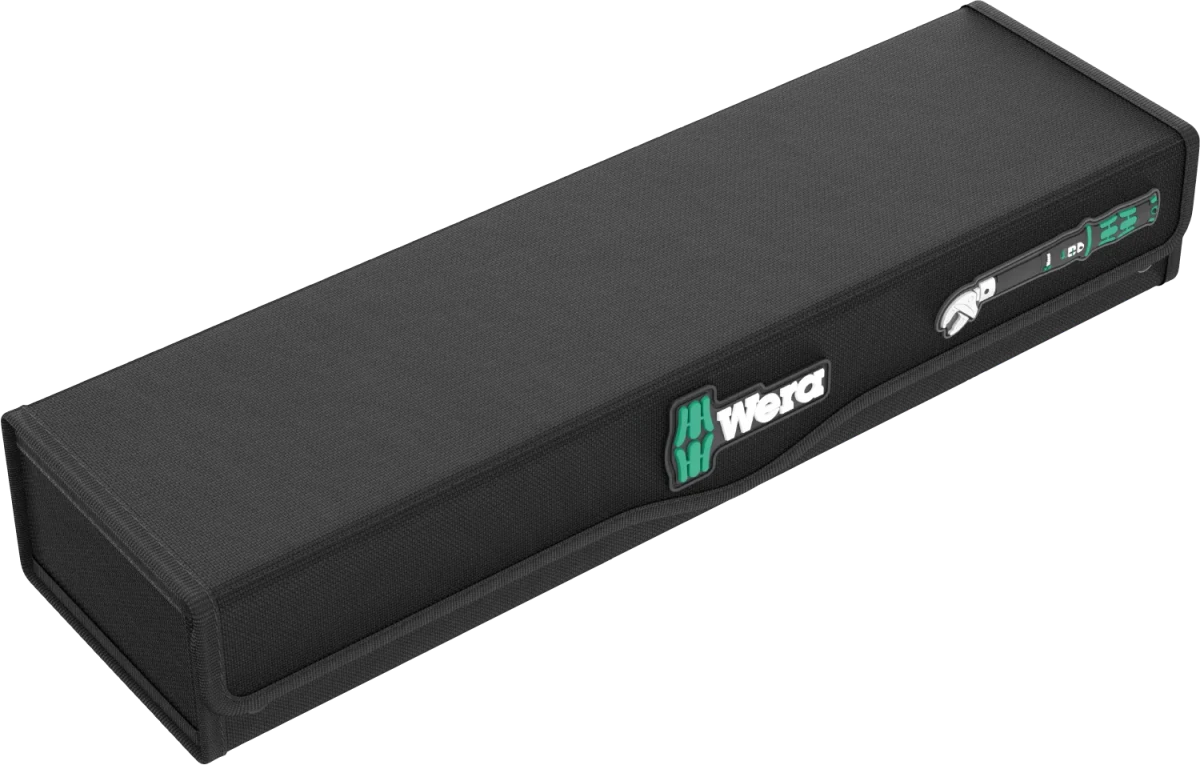

  • Closed black Wera textile storage case featuring rubberized Wera branding and tool icon

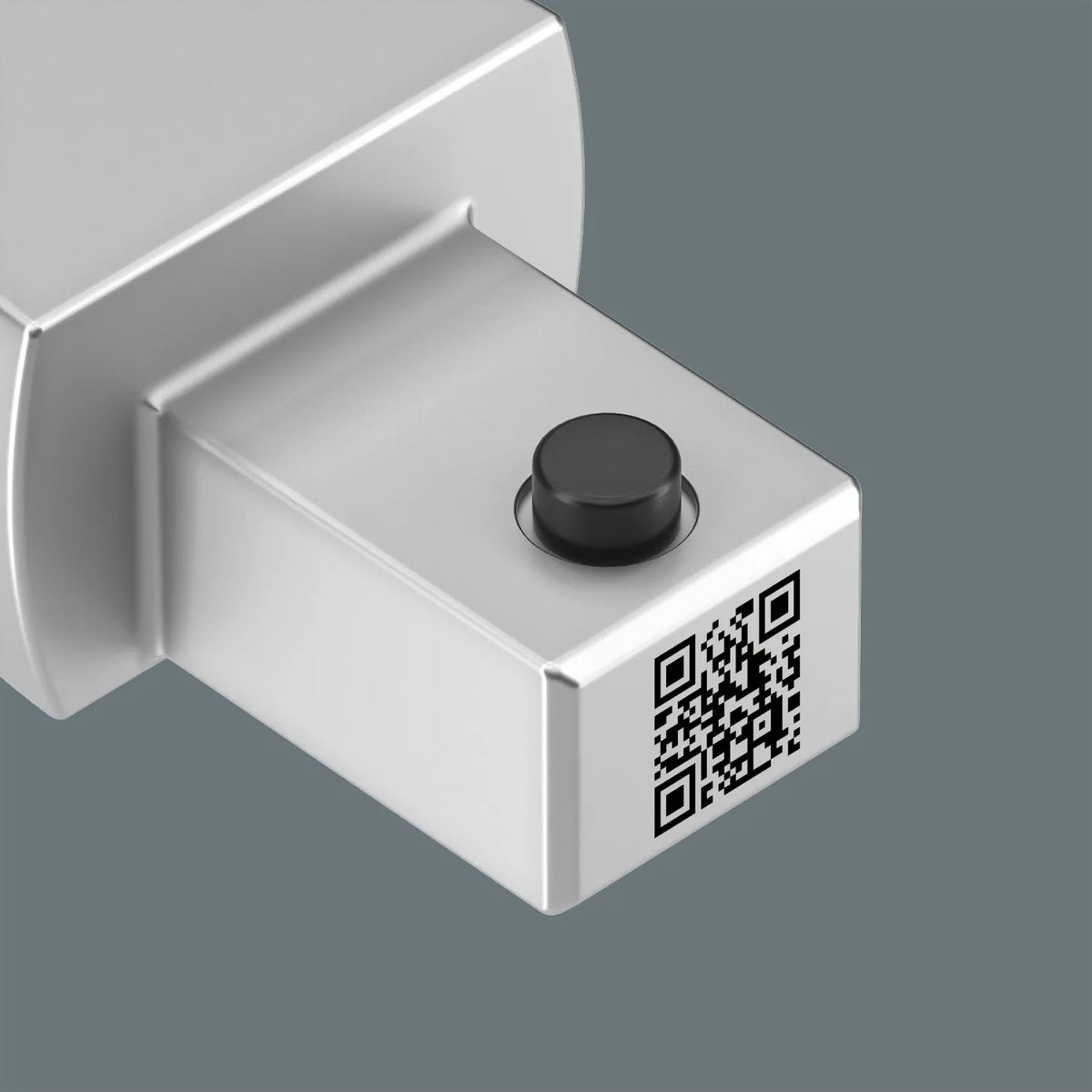

  • Close-up of laser-engraved QR code on a Wera 9x12 mm torque wrench insert tool
  • Diagram demonstrating the 30-degree return angle ratcheting action of a Wera Joker self-setting spanner
  • Close-up showing Wera Joker self-setting insert spanner automatically adjusting to grip a hex nu
  • Wera 9558 torque wrench in use tightening brass flare nut fittings on an HVAC outdoor mini-split unit
  • Close-up of pull-to-unlock handle and scale window on a Wera Click-Torque X 2 torque wrench
  • Graphic depicting the audible click and tactile release signal when Wera torque wrench reaches target value
  • Graphic showing a Wera torque wrench loosening a tight bolt at torque levels up to 50 Nm
  • Close-up of Wera Click-Torque X 2 receiver with 9x12 mm drive size and plus-minus 3 percent accuracy rating
  • Wera 9558 Torque Set product label showing part number 05136062001, EAN barcode, and included components diagram
1 11

Wera 9558 Click-Torque X 2 Set for Pipe Fittings (10-50 Nm) – 05136062001

Wera 9558 Click-Torque X 2 Set for Pipe Fittings (10-50 Nm) – 05136062001

$606.99
You Save $201.83 (24%)
$808.82 $606.99
Sale Sold out
Stock Status:
Out of stock, Back order date:
Shipping calculated at checkout.

More Information

SKU : 05136062001

Made in Taiwan Taiwan

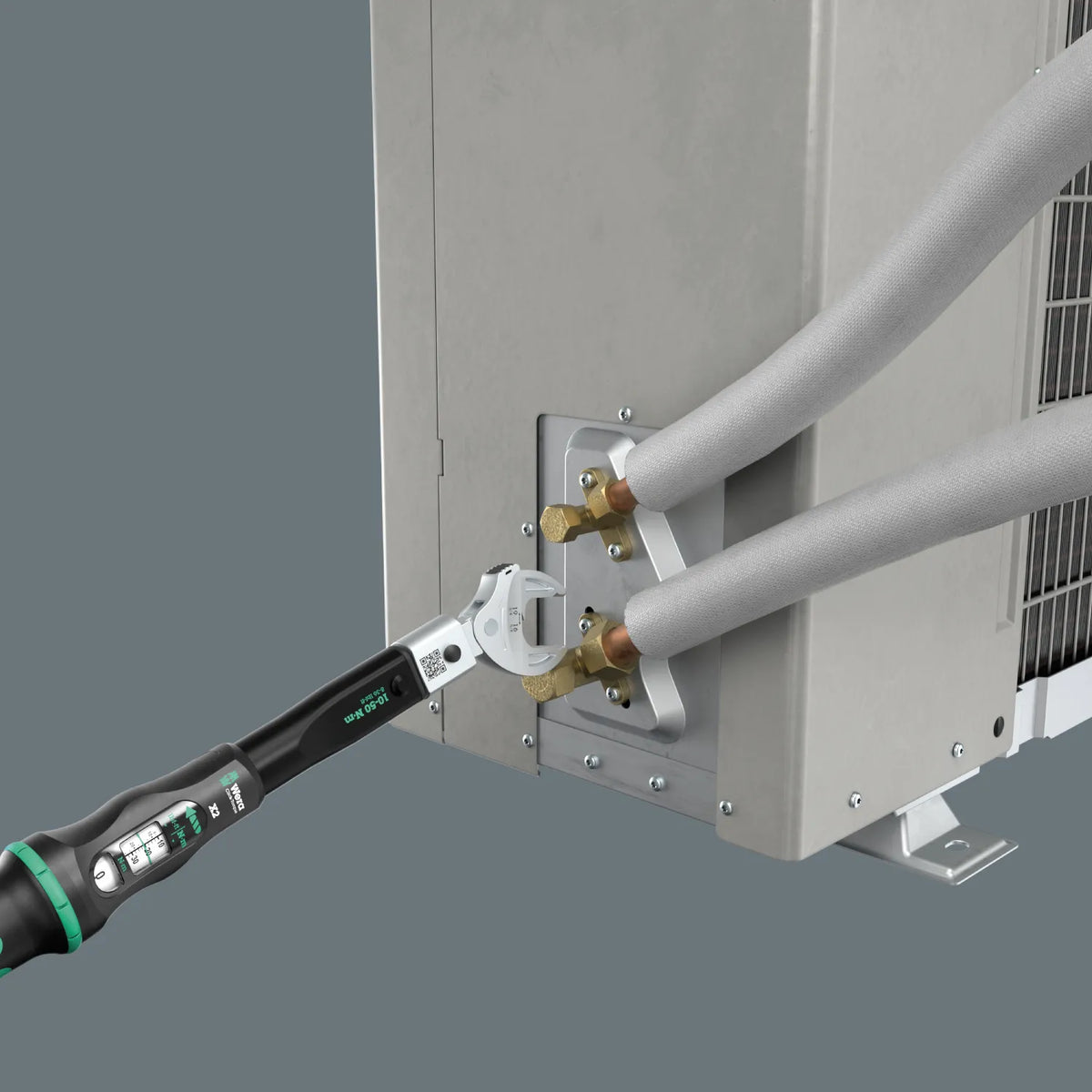

Precision meets speed with the Wera 9558 Click-Torque Set for Pipe Fittings (05136062001). Engineered specifically for HVAC technicians, plumbers, and refrigeration specialists, this 10–50 Nm torque wrench set simplifies tightening flare nuts, brass fittings, and pipe connections without risking over-tightening or strip-outs.



Featuring the robust Click-Torque X 2 handle with a standard 9x12 mm insert drive, this set includes Wera’s innovative self-setting Joker insert spanners that automatically adjust to both metric and imperial nut sizes.



Key Features & Benefits:

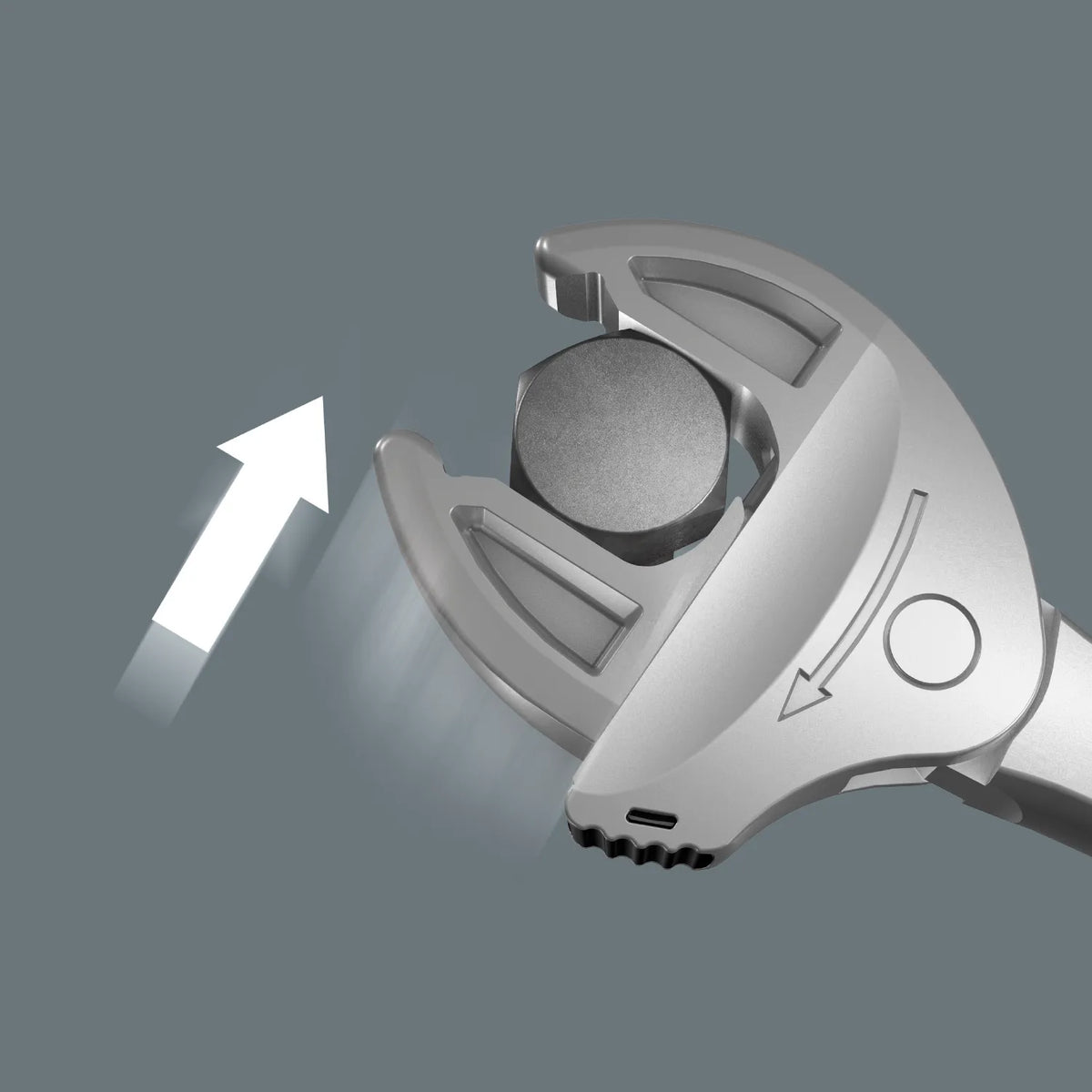

  • Self-Setting Joker Spanners: Automatically grips continuous metric and imperial sizes within range, reducing the need to carry full wrench sets onto job sites or lift buckets.

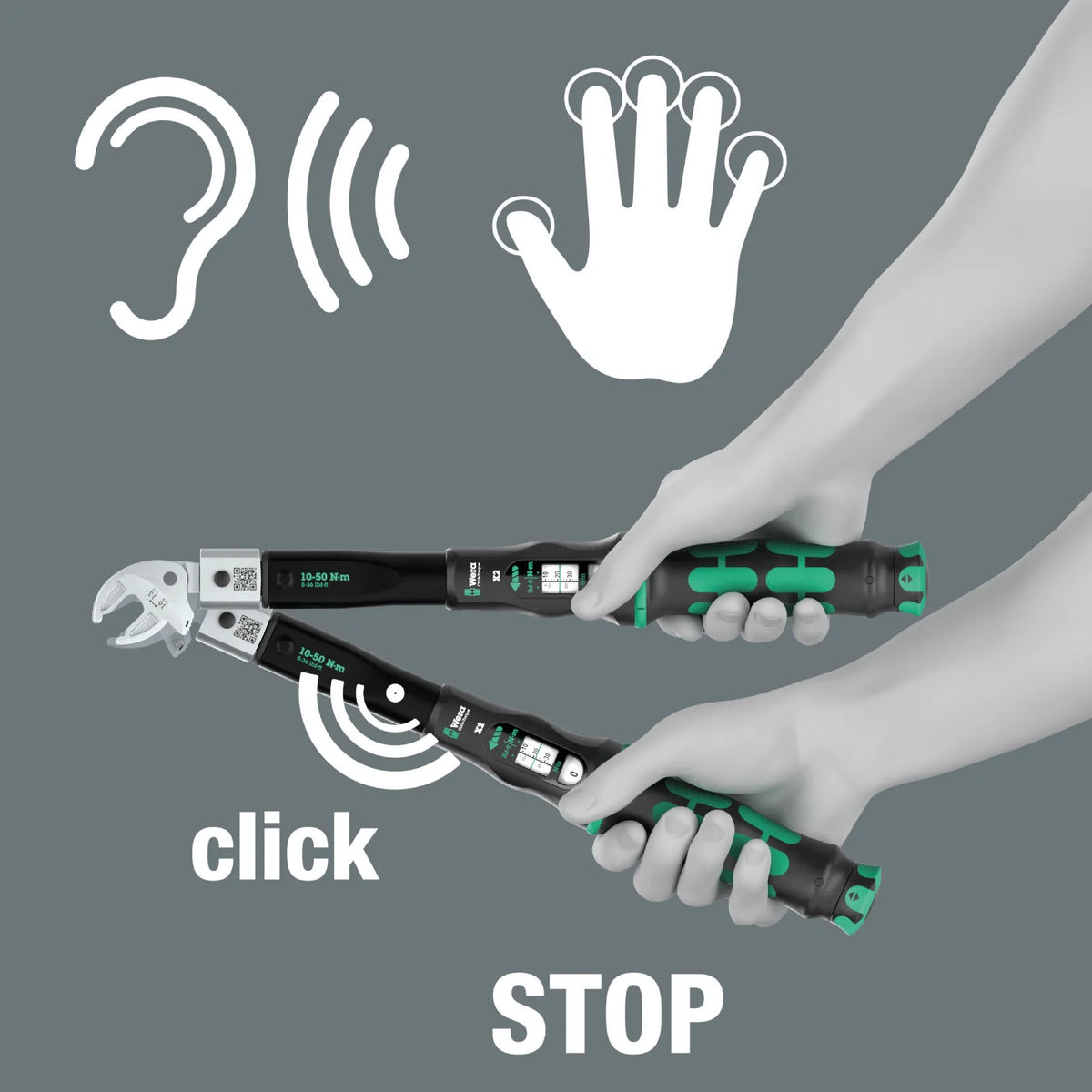

  • Audible & Tactile Signals: Features a clear mechanical click and release signal upon reaching set torque targets for total accuracy during HVAC mini-split and line set installations.

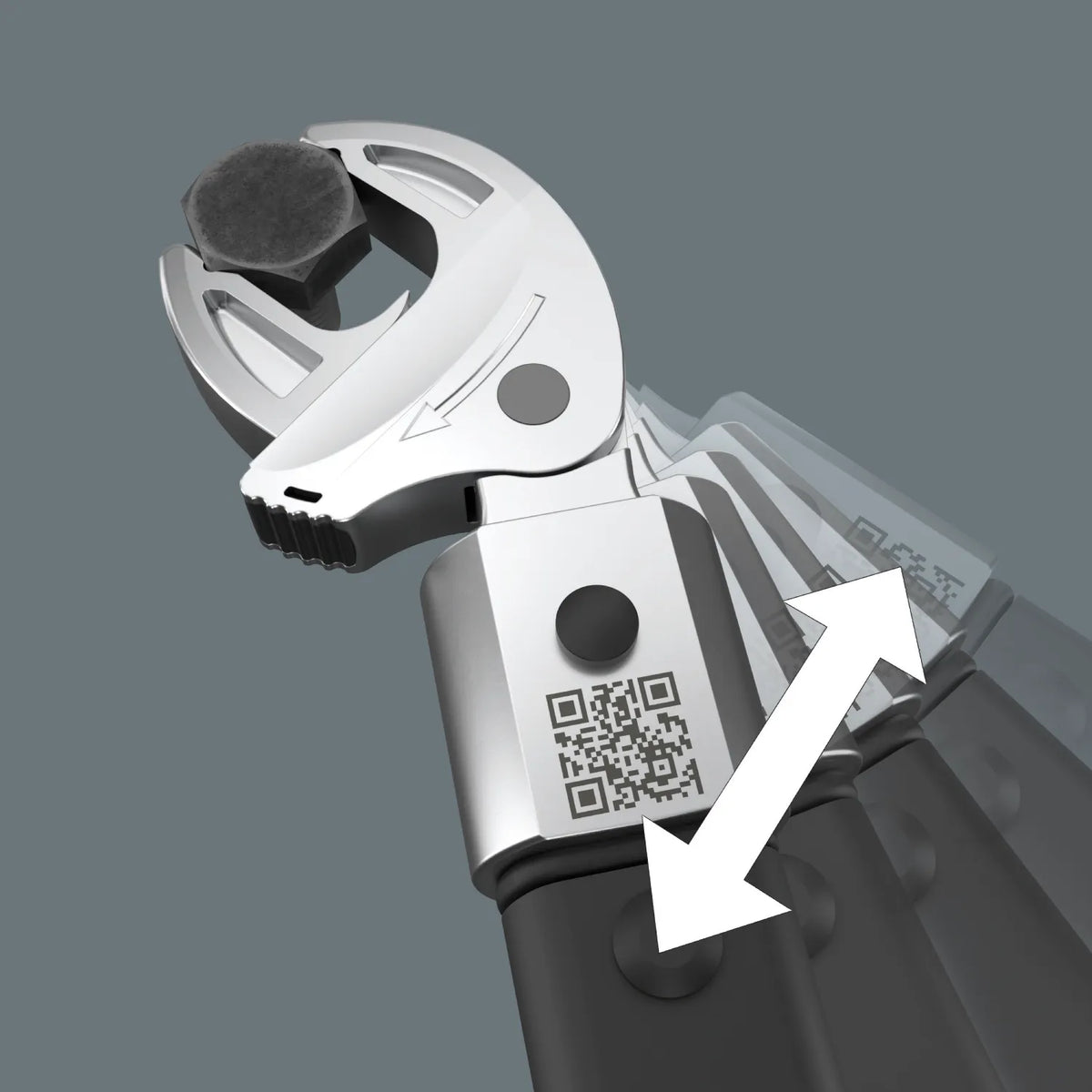

  • Ratchet Mechanism: Integrated lever action on the Joker inserts allows for continuous 30° return angle ratcheting without removing the tool from the fastener.

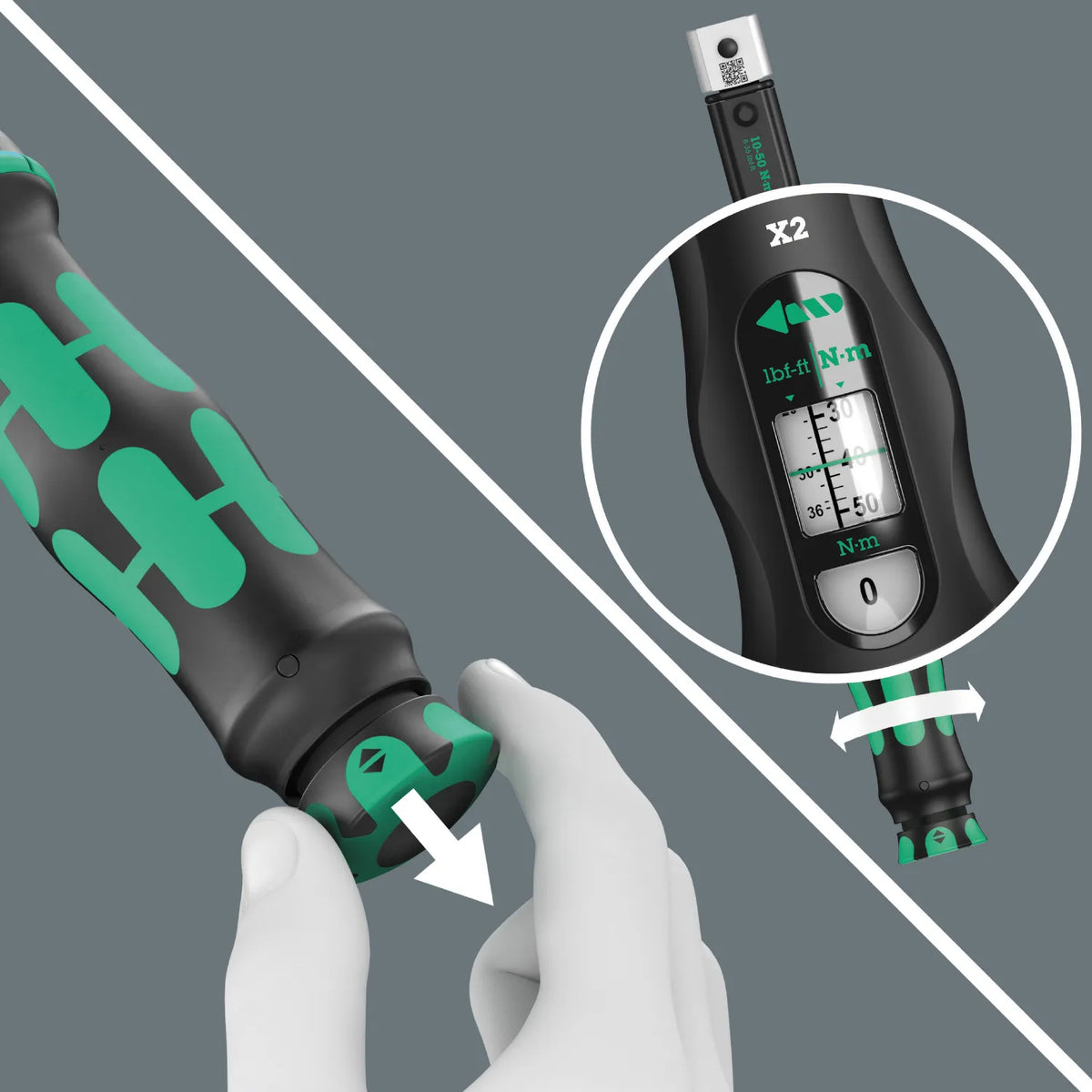

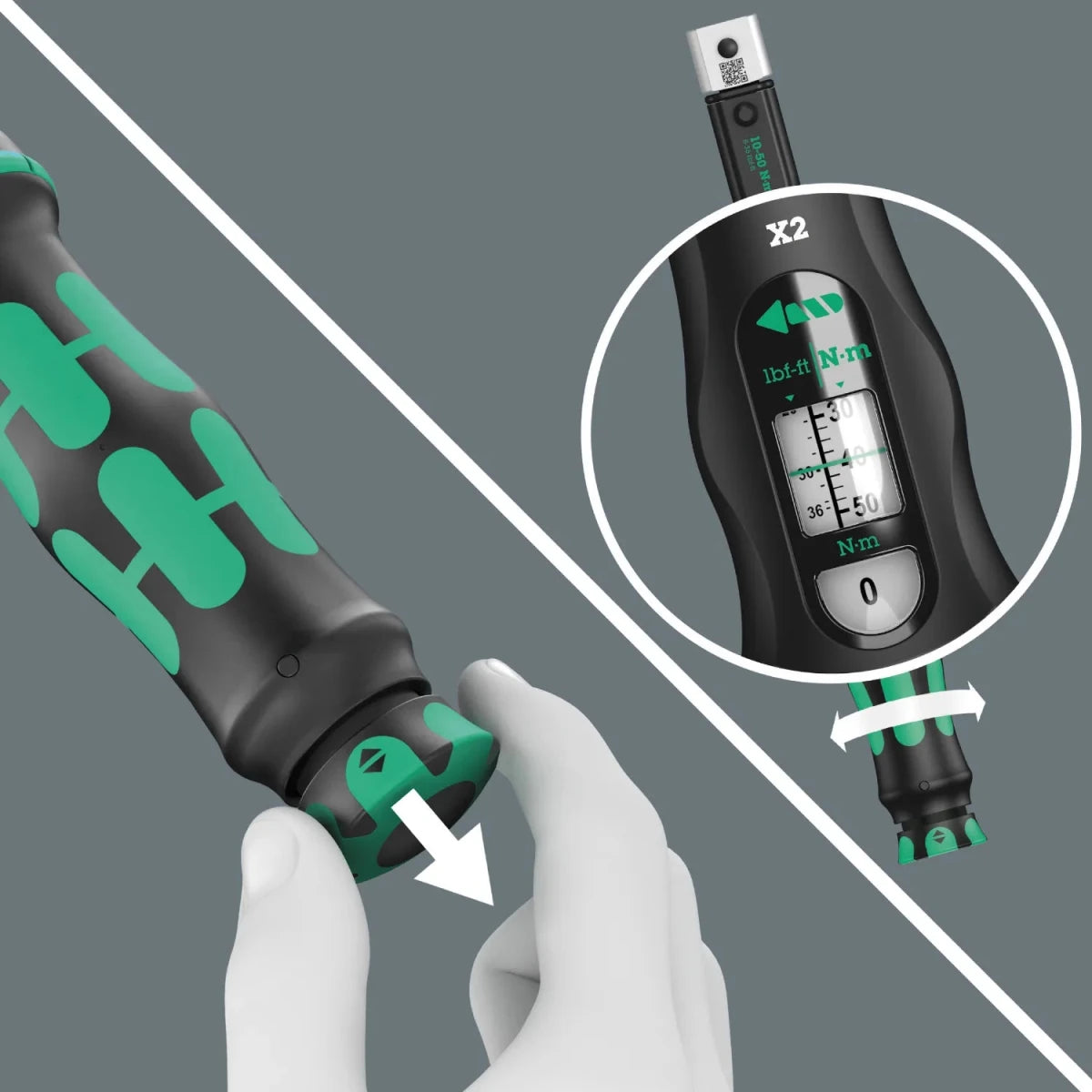

  • Easy Scale Adjustment: Smooth pull-to-unlock handle design with main and fine scale readout for exact torque settings.

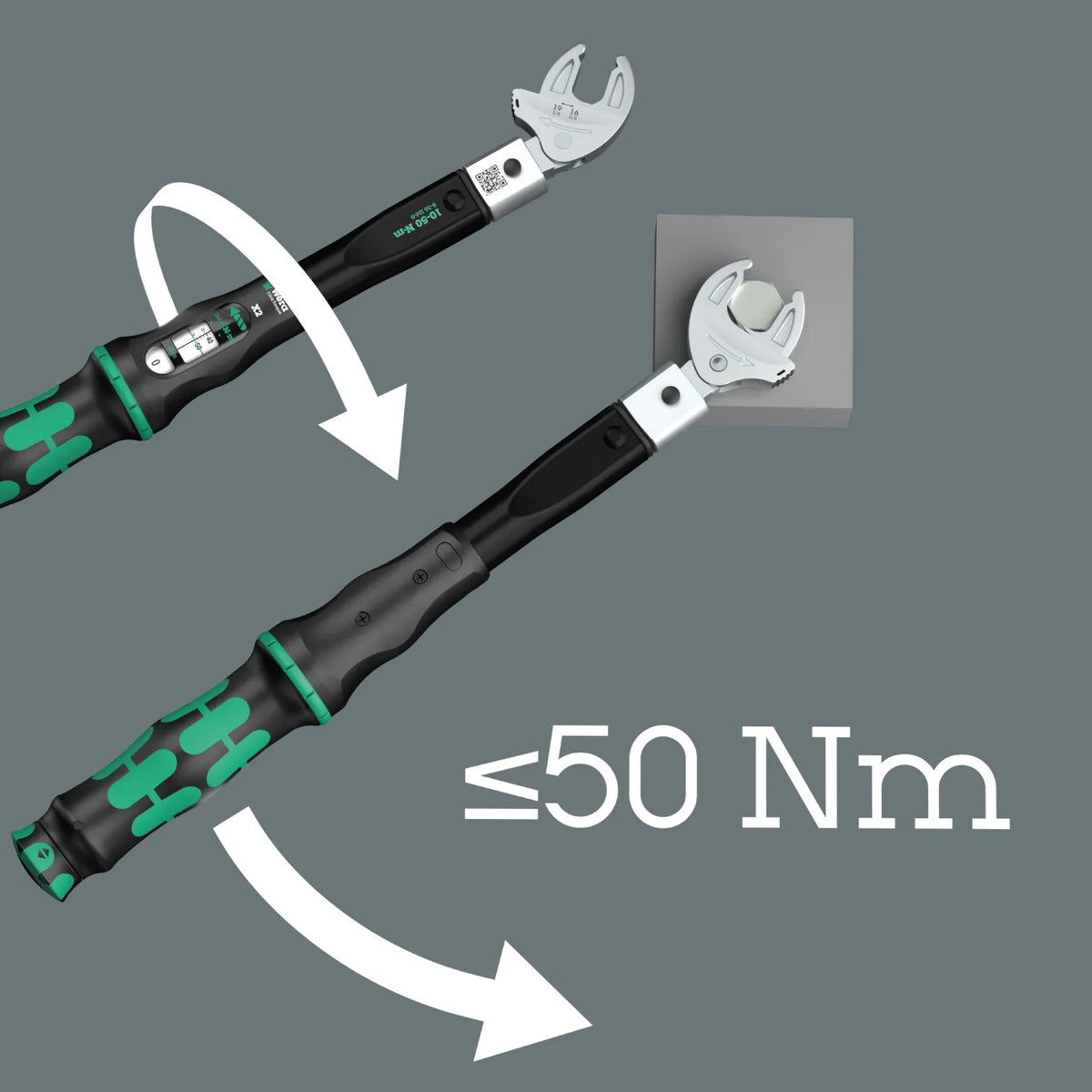

  • Reverse Torque Capability: Safe for loosening connections at torque levels up to 50 Nm without damaging the internal torque mechanism.



Specifications:

  • Part Number / EAN: 05136062001 / 4013288238740

  • Torque Range: 10 – 50 Nm

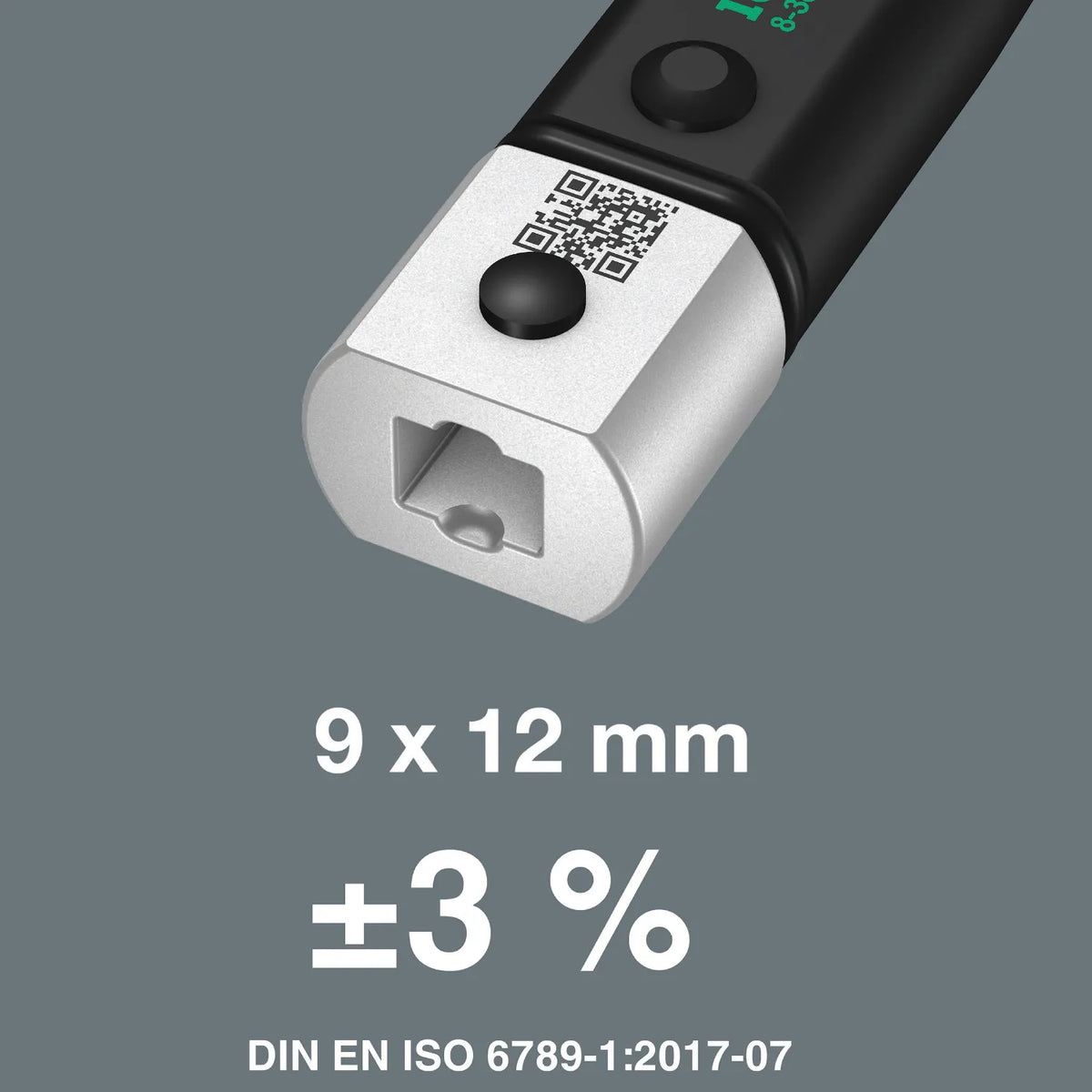

  • Insert Mount Drive: 9x12 mm female rectangular socket

  • Accuracy: ±3% of set value



What’s Included:

  • 1x Click-Torque X 2 Wrench: 9x12 mm drive, 10–50 Nm range (±3% accuracy according to DIN EN ISO 6789-1:2017-07)

  • 1x 7772 B Ratchet Insert: 3/8" square drive, 9x12 mm connection

  • 1x 7870 Joker S Insert: 10–13 mm (7/16"–1/2") self-setting spanner

  • 1x 7870 Joker M Insert: 13–16 mm (1/2"–5/8") self-setting spanner

  • 1x 7870 Joker L Insert: 16–19 mm (5/8"–3/4") self-setting spanner

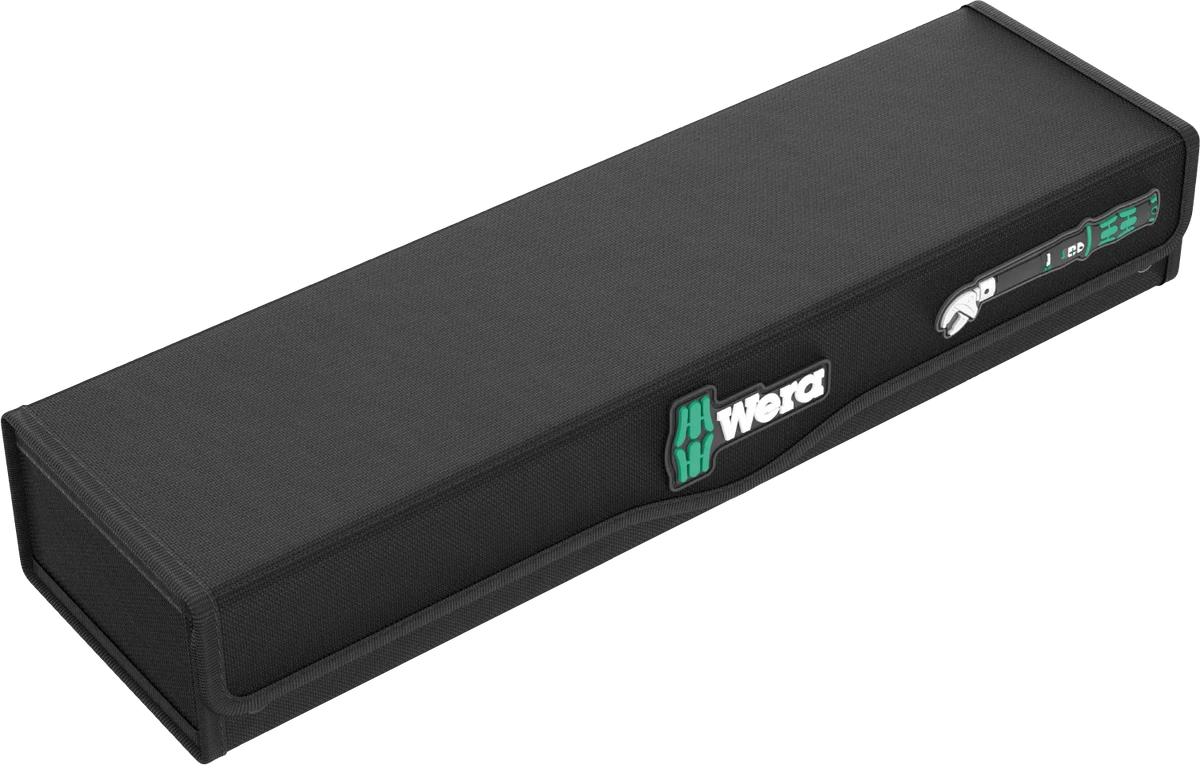

  • 1x Compact Textile Storage Case: Robust, surface-friendly transport pouch with tool protection
