Wera Kraftform Kompakt VDE Safe-Torque Speed Switch Cabinet Set Basic 2 (11-Piece Set) | 05006635001

The Wera Kraftform Kompakt VDE Safe-Torque Speed Switch Cabinet Set Basic 2 (05006635001) is an 11-piece professional insulated tool kit designed specifically for switch cabinet couplings, distribution boards, and control panel installations requiring square head (Robertson) drive profiles. Engineered to safeguard delicate electrical components, this set features Wera's 7516 VDE adjustable torque handle (2.4 to 4.0 Nm), an 817 VDE fixed blade-holding handle, and 9 interchangeable VDE slim blades.

Every blade and handle in this kit is individually tested at 10,000V AC in accordance with IEC 60900 standards, certifying maximum safety on live equipment up to 1,000V. The torque handle features a slip-over mechanism to prevent over-tightening, certified ±10% accuracy, and a distinct audible/tactile click when your selected torque setting is reached. Need to back out tight or stuck fasteners? Activate the integrated Torque Lock function to bypass torque limiting for unlimited manual loosening power.

Key Features & Benefits

• Square Drive Profile Support: Basic Set 2 includes dedicated VDE blades designed for square head screws (Robertson) commonly found in modern electrical enclosures and breaker panels.

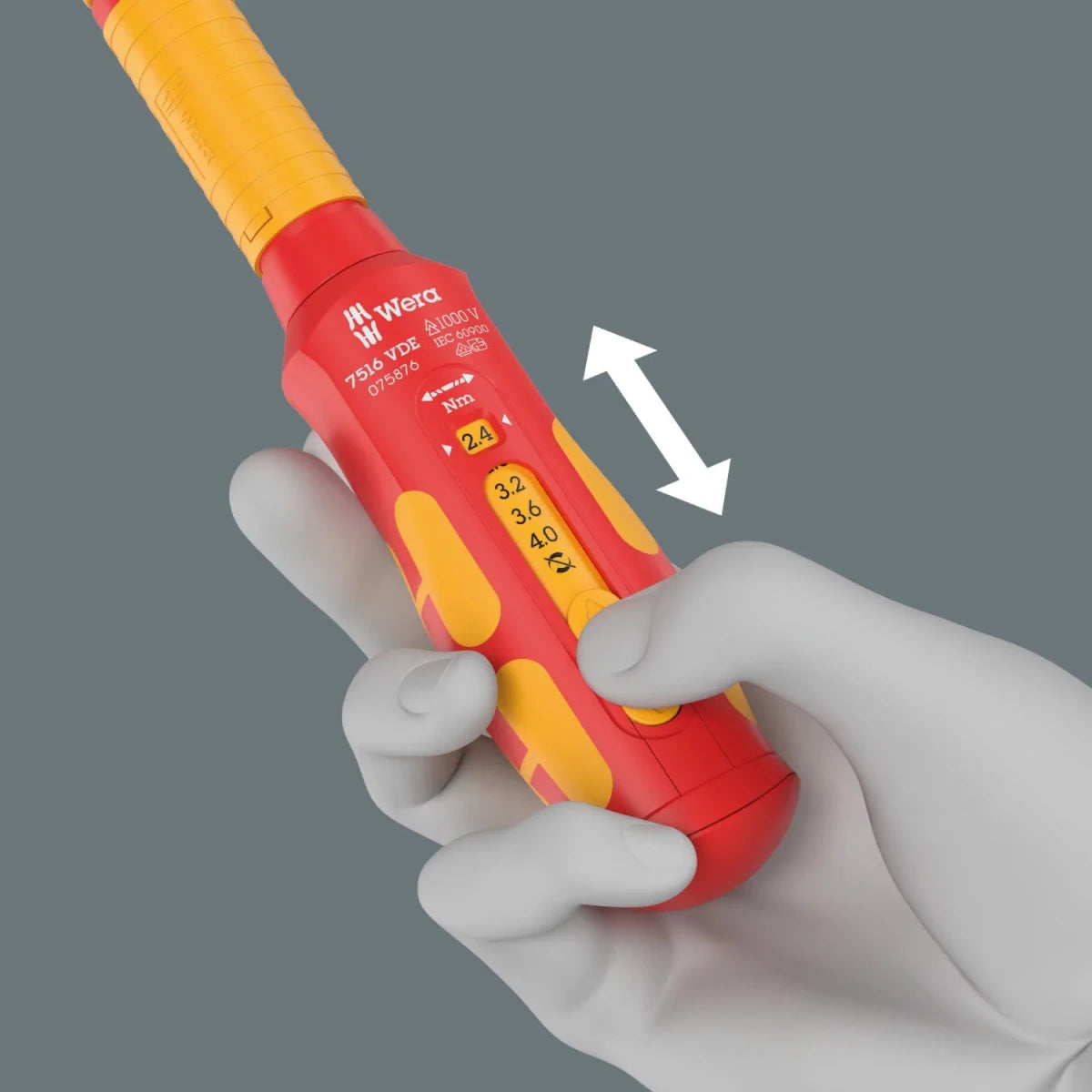

• 7516 VDE Adjustable Torque Handle: Quickly switch between 5 preset torque levels (2.4, 2.8, 3.2, 3.6, and 4.0 Nm) with certified ±10% torque accuracy.

• 817 VDE Kraftform Handle: Includes a secondary fixed blade-holding handle for general, non-torque screwdriving tasks.

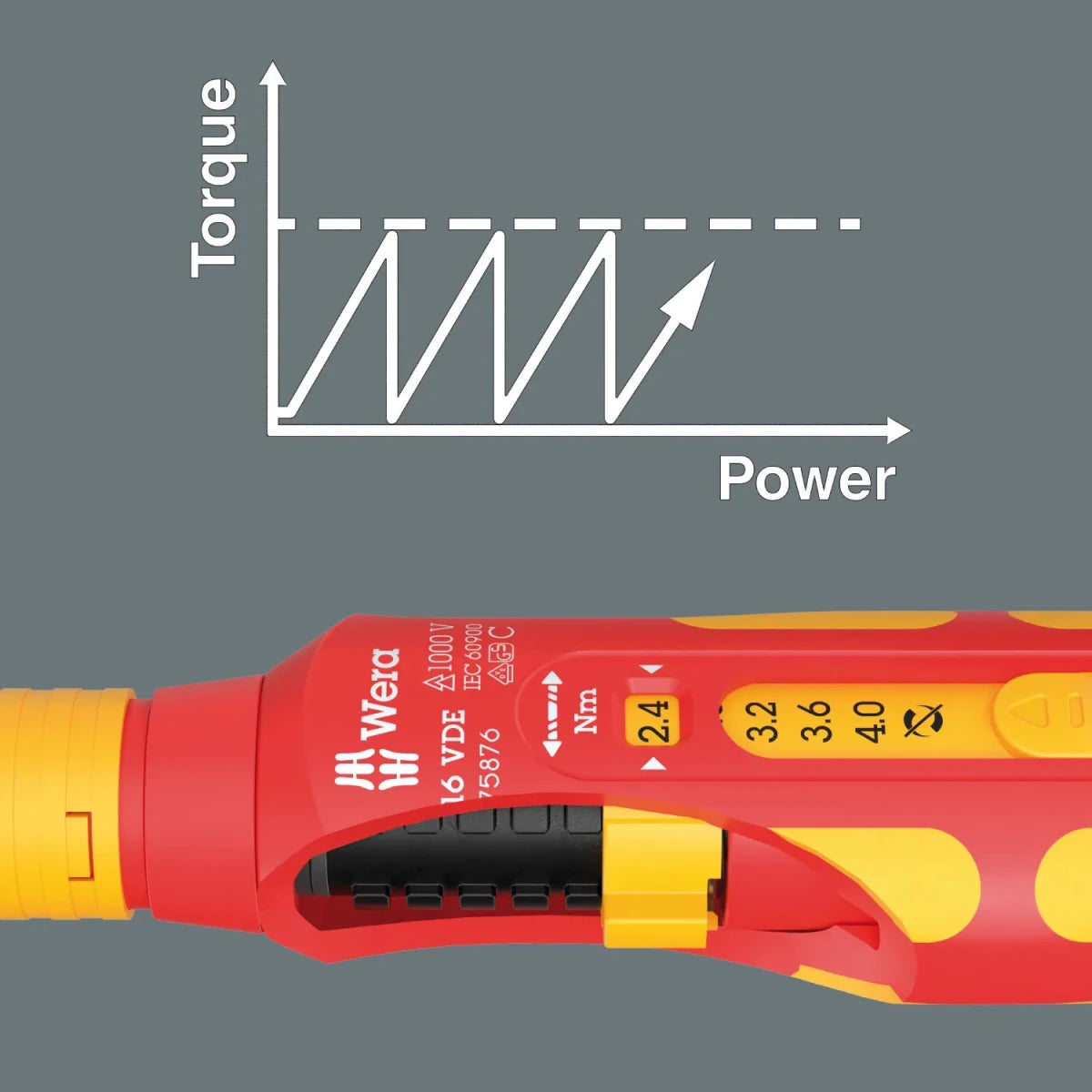

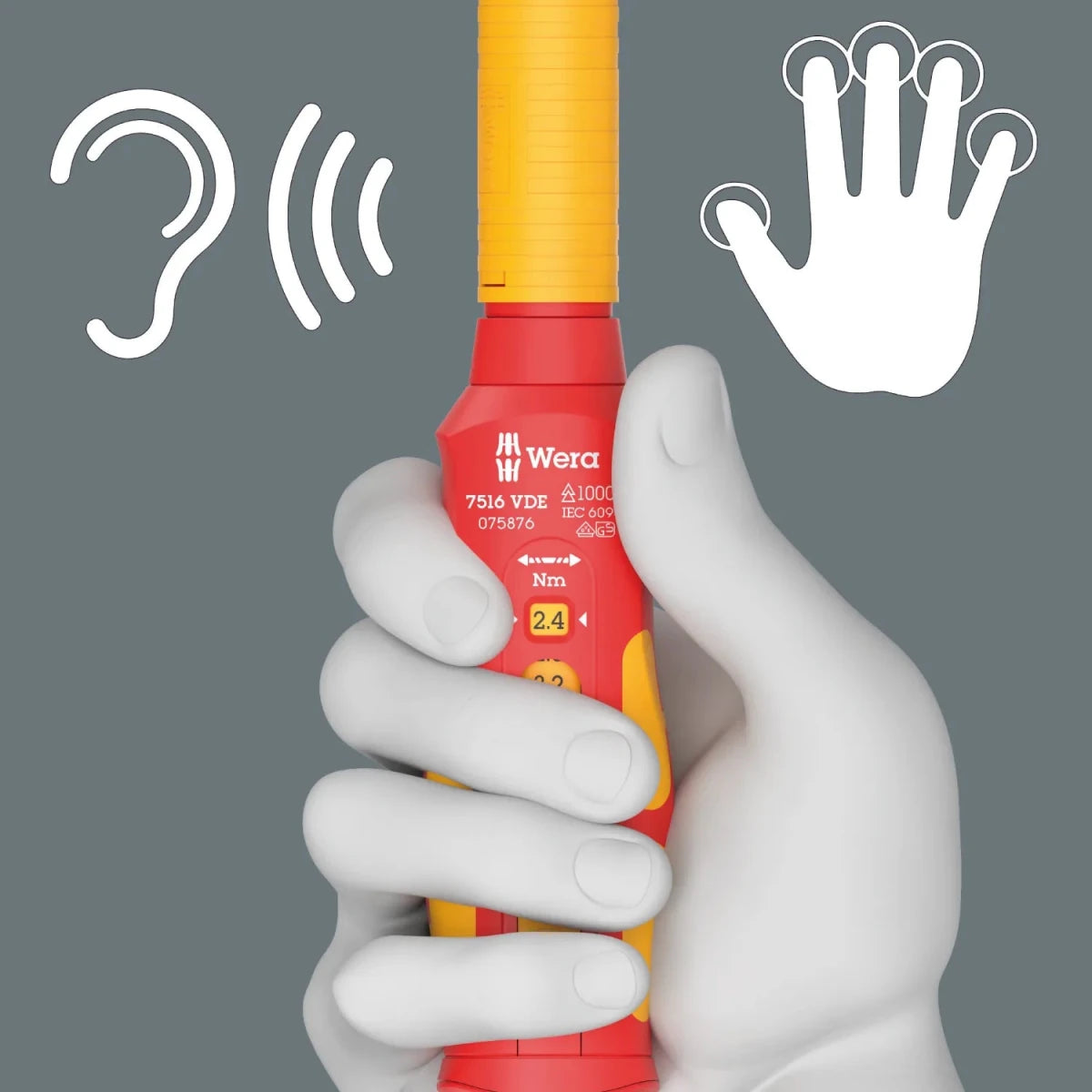

• Over-Torque Protection: Slip-over mechanism delivers clockwise and counterclockwise torque control with clear tactile and audible excess-load feedback.

• Torque Lock Mode: Easily disengage torque control for maximum manual torque when unfastening tight or seized cabinet screws.

• 1,000V IEC 60900 Certified: Individually load-tested to 10,000V AC to guarantee certified protection up to 1,000V AC / 1,500V DC.

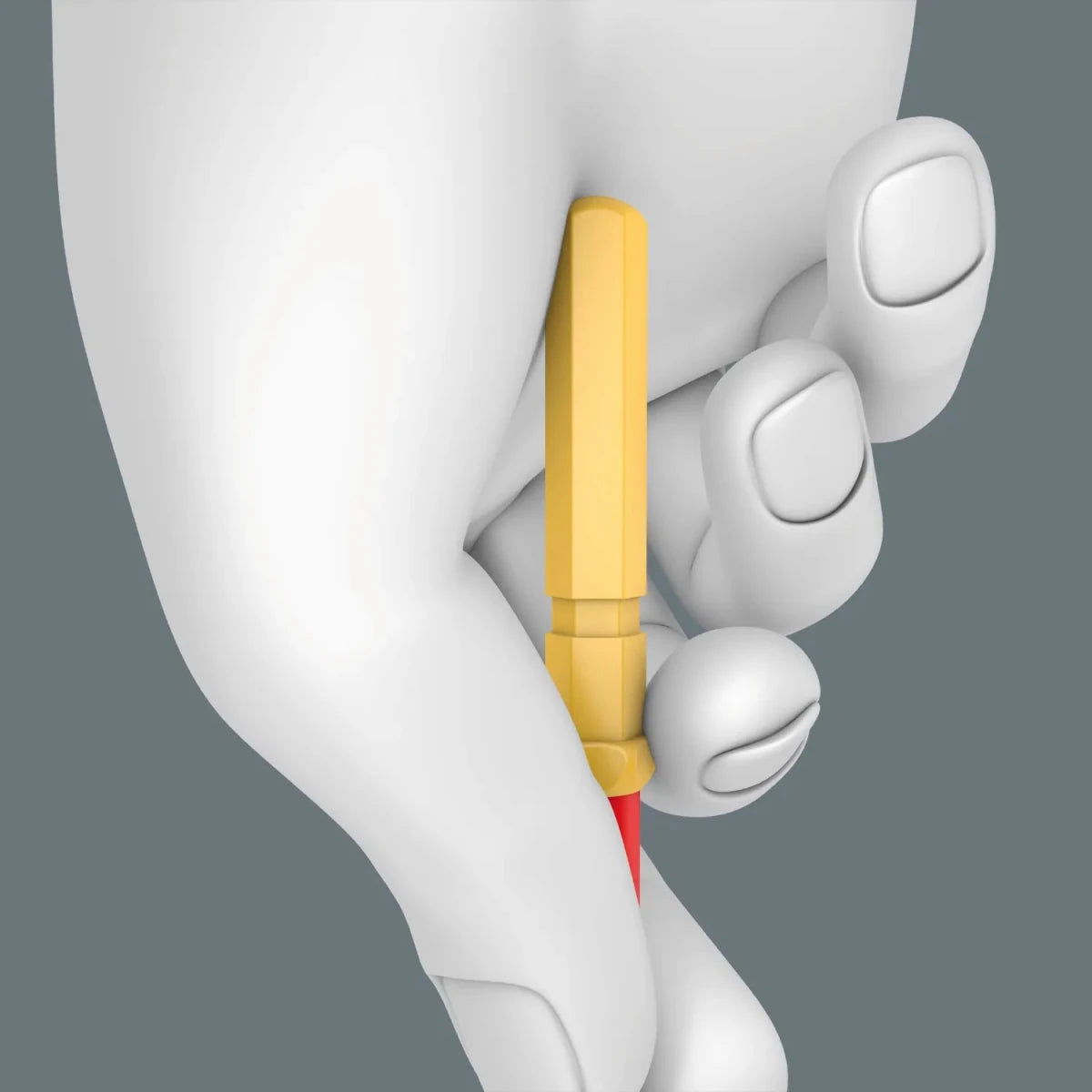

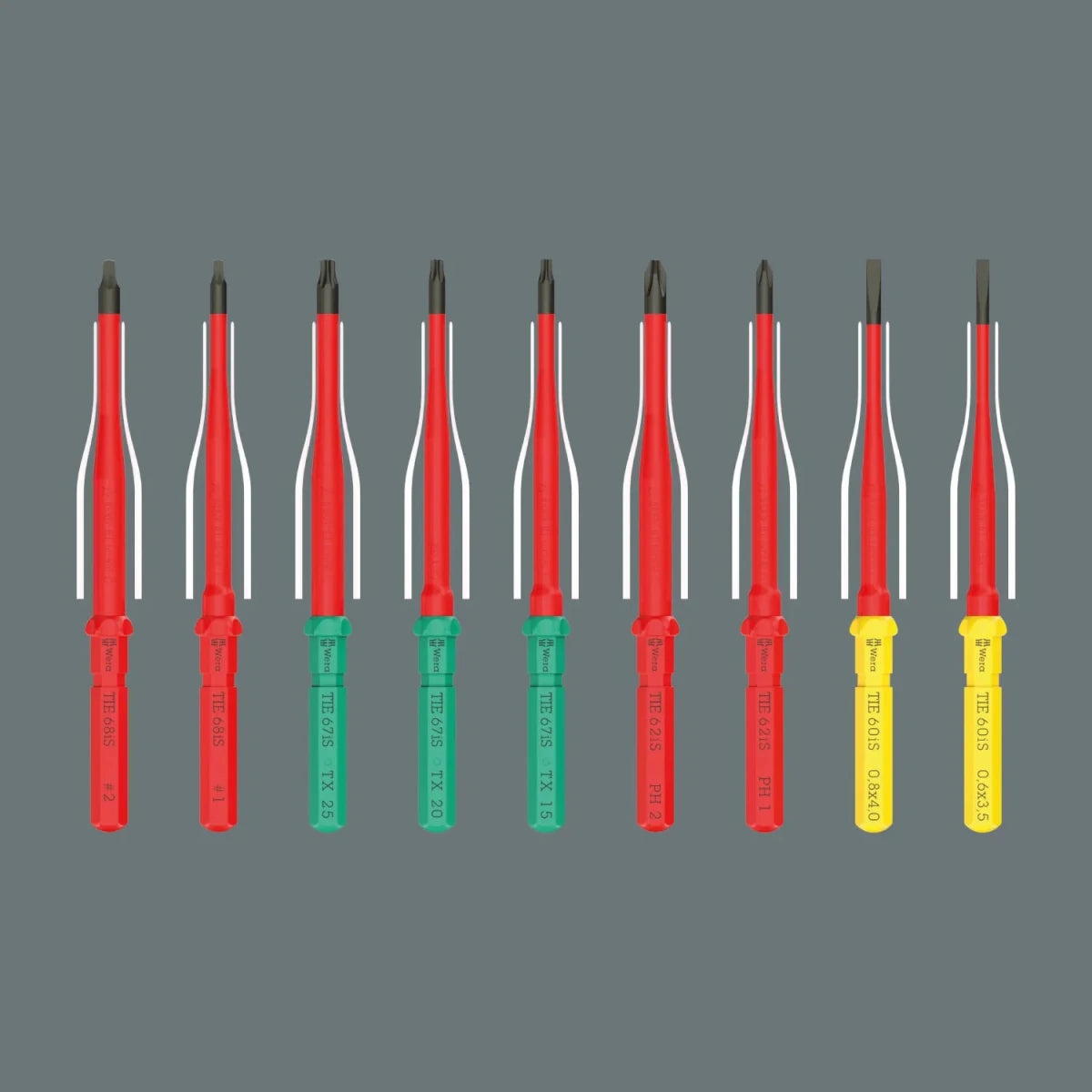

• Slim-Diameter Blades (iS Series): Integrated insulation shaft with reduced outer diameter allows easy access to low-lying terminal screws and spring-clamp terminals.

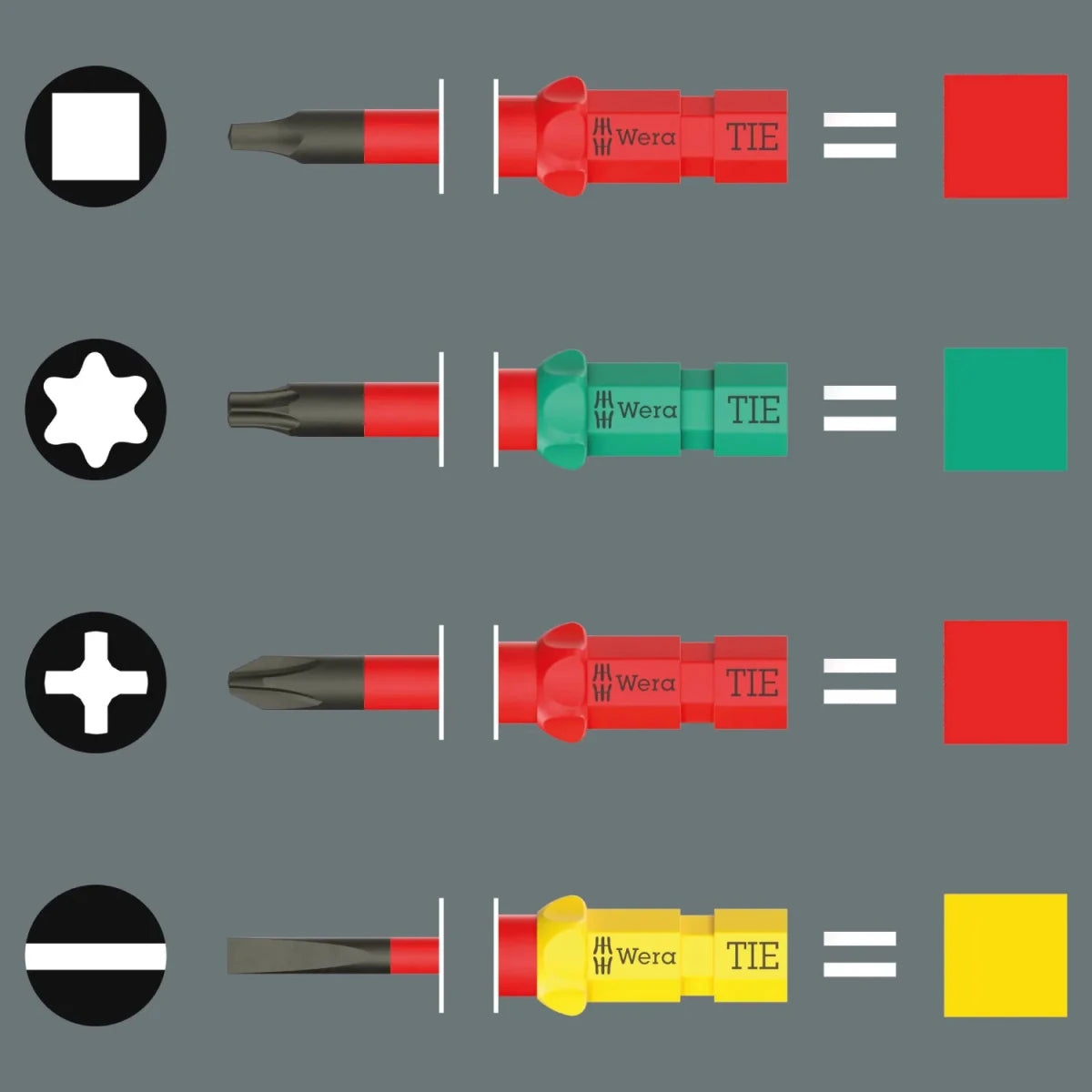

• Take It Easy Tool Finder: Color-coded profile rings and laser-etched sizing make picking the correct blade fast and intuitive.

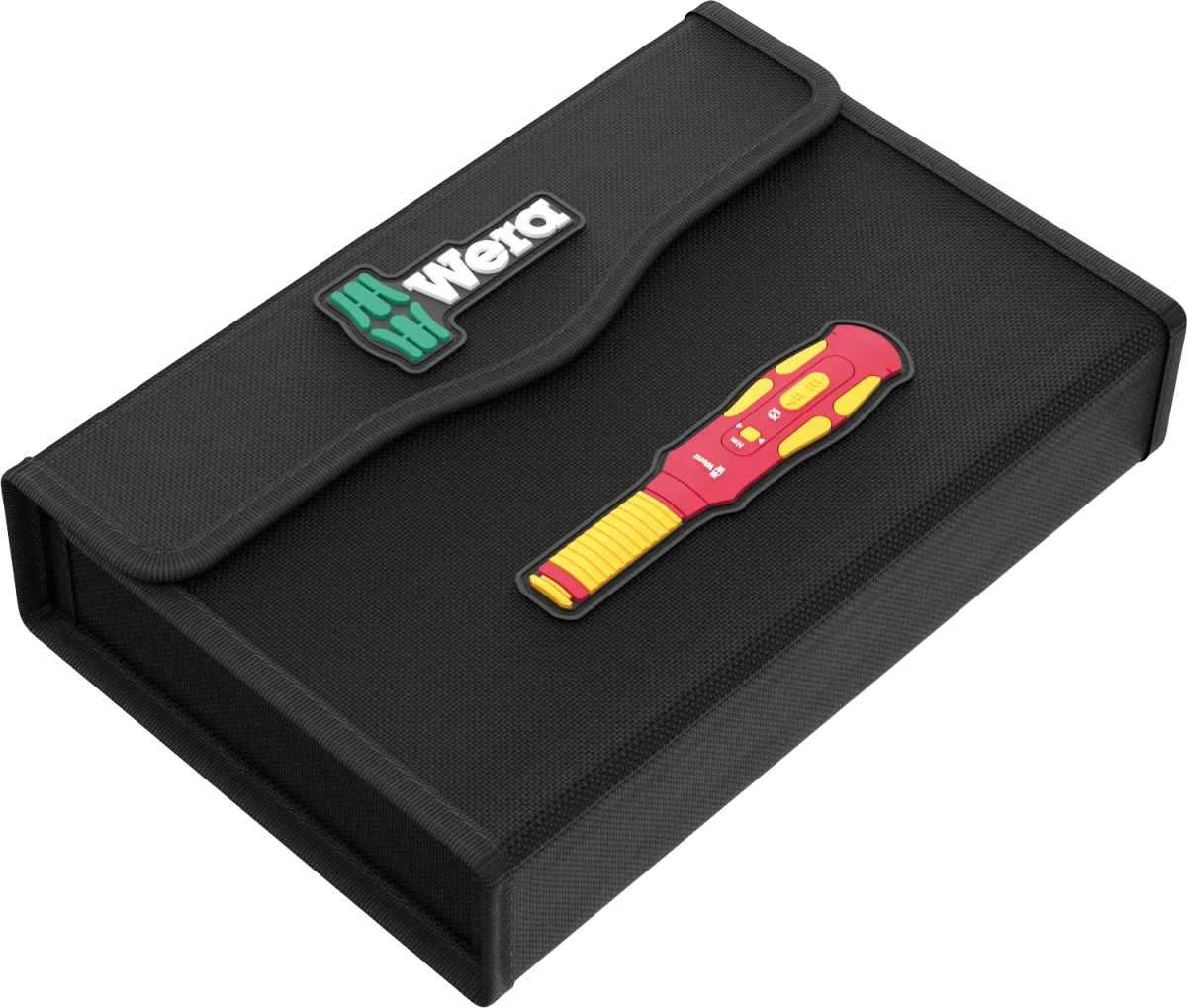

• Compact Textile Pouch: Heavy-duty textile storage case with hook-and-loop closure organizes all 11 components and attaches easily to the Wera 2go system.

Specifications

• Brand: Wera Tools

• MPN / Item No.: 05006635001

• Series: Kraftform Kompakt VDE Safe-Torque Speed

• Model Name: Switch Cabinet Set Basic 2

• Piece Count: 11 Pieces

• Torque Adjustment Range: 2.4 – 4.0 Nm (7516 VDE Handle)

• Torque Accuracy: ±10%

• Insulation Certification: IEC 60900 (1,000V AC / 1,500V DC)

• Condition: Brand New in Original Factory Packaging

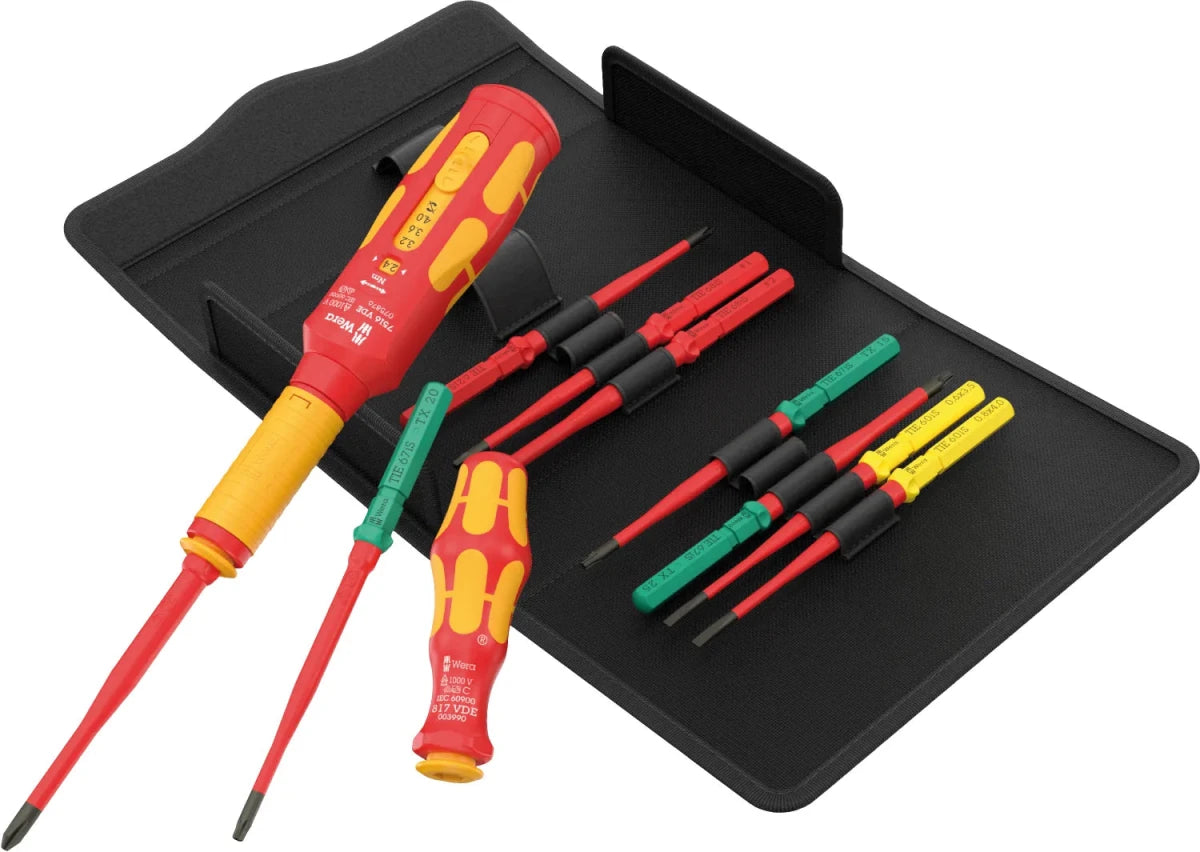

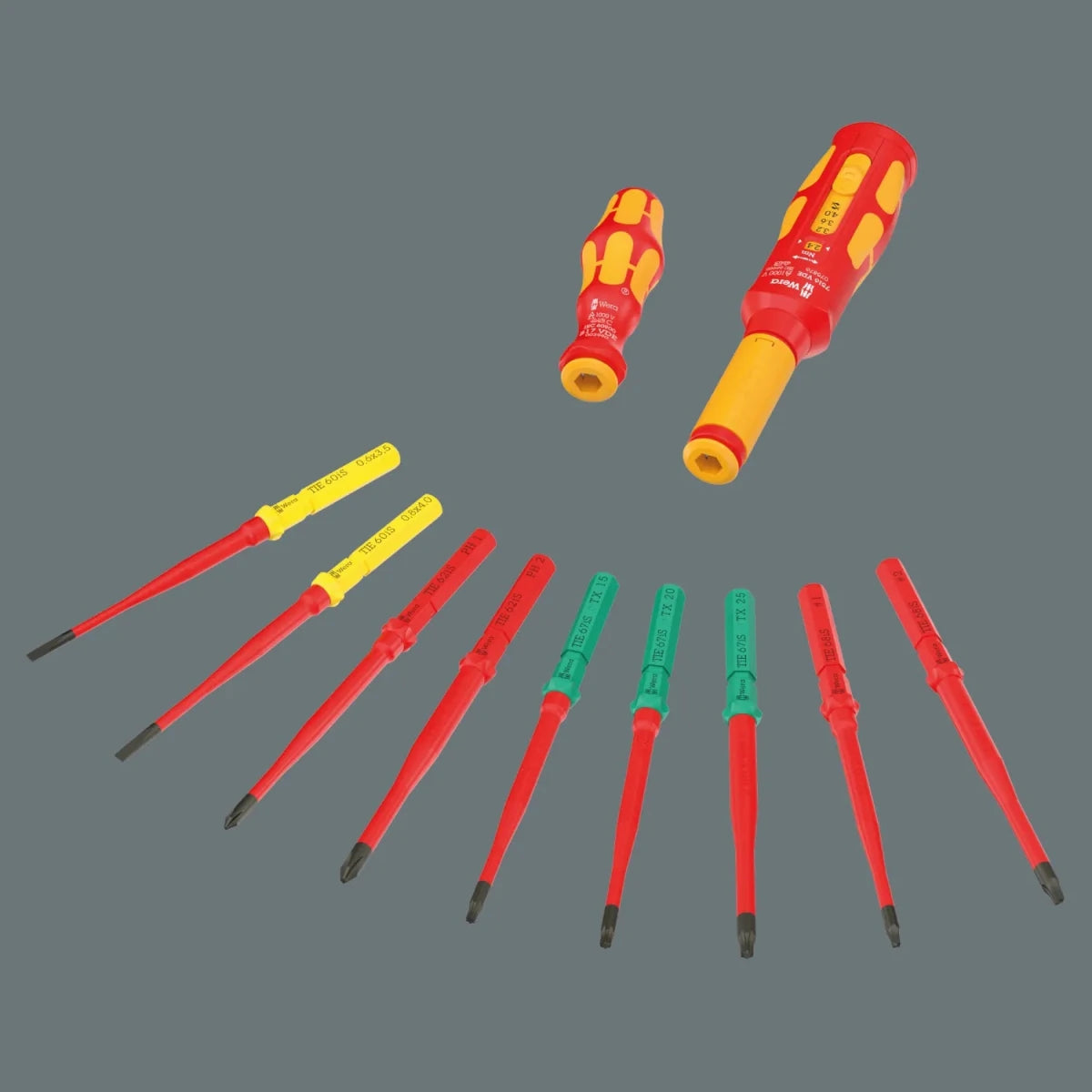

Package Includes (11 Pieces Total)

• (1x) 7516 VDE Kraftform Safe-Torque Speed Torque Handle (2.4 / 2.8 / 3.2 / 3.6 / 4.0 Nm)

• (1x) 817 VDE Kraftform Blade-Holding Handle

• (2x) KK 62 iS Phillips Slim Blades: PH1, PH2 x 157mm

• (2x) KK 65 iS PlusMinus PZ/S Slim Blades: #1, #2 x 157mm

• (2x) KK 68 iS Square (Robertson) Slim Blades: #1, #2 x 157mm

• (3x) KK 60 iS Slotted Slim Blades: 0.6x3.5mm, 0.8x4.0mm, 1.0x5.5mm x 157mm

• (1x) Compact Textile Pouch with Hook & Loop Fastener Strip
